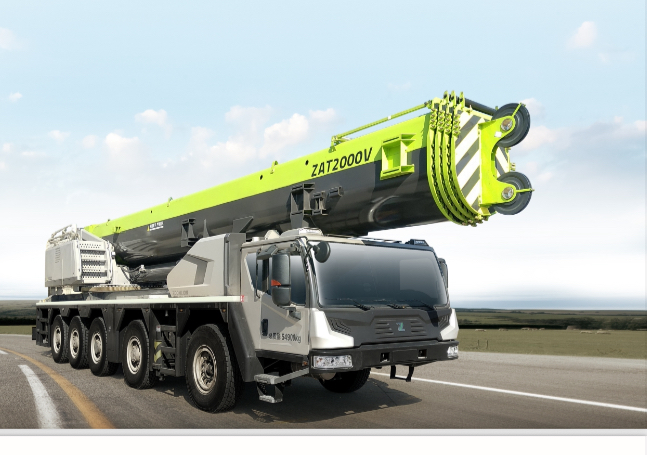

NEW Zoomlion All-Terrain Crane ZAT2000V863

Introducing Zoomlion All-Terrain Crane ZAT2000V863: Unprecedented Power and Precision

Key Components

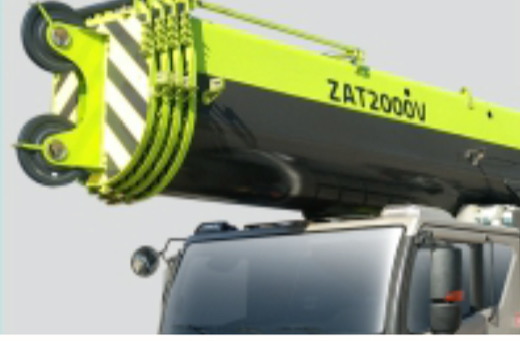

1. Main Boom: An 8-section, 85-meter ultra-strong main boom with an oval cross-section. Its optimized height-width ratio ensures exceptional lateral stiffness, enabling reliable heavy-duty lifting.

2. Jib: Standard configurations include 10.4-meter and 17.5-meter jibs, with the option to add two 8-meter standard sections for extended reach and versatile operations.

3. Frame: Reinforced trapezoidal cross-section structure, designed with increased height and width, offers superior bending and torsional resistance, ensuring stability even under extreme loads.

4. Slewing Platform: Constructed with a composite box structure, featuring thicker baseplates and main structural plates. This design enhances load-bearing capacity and weld reliability, guaranteeing long-lasting performance.

5. Outriggers: Trusted H-shaped outriggers with increased cross-sectional dimensions provide enhanced deformation resistance. Their smooth and reliable deployment and retraction mechanism ensures stable operation in various working conditions.

6. Counterweights: Comes with a standard 72-ton movable counterweight system, composed of 4 main counterweights and 4 side counterweights. It supports 7 combination modes (0t, 12t, 22t, 32t, 42t, 72t). The hydraulic cylinder lifting mechanism allows for effortless combination and quick installation.

7. Steel Wire Rope: 1960MPa high-strength steel wire rope with a diameter of 20mm, offering excellent durability and load-bearing performance.

8. Slewing Bearing: Newly-specified enhanced three-row roller slewing bearing provides smoother operation under heavy loads compared to single-row ball slewing bearings, reducing structural deformation and ensuring stability.

Lifting Performance

1. Maximum Lifting Moment: Boasts an impressive 680t.m, leading the industry in short-boom heavy lifting and medium/long-boom high-reach operations.

2. Main Boom (85 meters): Achieves a maximum lifting height of 85 meters with a maximum load capacity of 7.2 tons.

3. Main Boom (78.5 meters) + Jib (17.5 meters): Extends the maximum lifting height to 96 meters, capable of lifting up to 3.5 tons.

4. Main Boom (78.5 meters) + Jib (33.5 meters): Reaches a remarkable maximum lifting height of 112 meters, with a maximum load capacity of 1.3 tons.

Operational Convenience

1. Single-Power System: Features an efficient and stable lifting operation transmission mode: lower carriage oil pump + mid-circulation mechanism + upper carriage actuator. This setup eliminates the risk of environmental upgrade and significantly reduces maintenance costs.

2. Parts Compatibility: High part通用性 across the product series ensures a large inventory of spare parts, providing quick and easy access.

3. Interchangeable Counterweights: The 42-ton main counterweights of the five-axle series products are interchangeable, allowing for flexible combinations.

4. Low-Speed Transit: Can travel at low speeds with 22 tons of base counterweights and two 17.5-meter jibs, meeting most lifting height requirements without the need for auxiliary transportation.

5. Integrated Goose-Neck and Jib: The combined goose-neck and jib design with a 30° luffing angle maximizes the main boom’s working space, enhancing operational efficiency.

Driving Performance

1. Proven Power Train: Equipped with a reliable industry-standard combination of Weichai WP12 engine, Fast 12-speed automatic transmission, and optimally matched drive axles. This setup ensures stable performance, low fuel consumption, and enhanced downhill braking with the built-in hydraulic retarder.

2. Superior Mobility: 3-axle drive, with disc brakes on axles 1 and 5. Full-wheel electronic control steering offers 6 steering modes for improved maneuverability and reliability. Fitted with 385 large-diameter tires, it excels in navigating narrow spaces. The air-oil suspension system supports multiple modes, including suspension, rigid locking, automatic leveling, vehicle lifting, and single-side lifting, ensuring excellent ride comfort, passability, and stability on rough terrains.

Control Performance and Ergonomics

1. Advanced Control Technology: Incorporates state-of-the-art CAN bus and computer-integrated control systems. The integrated control panel features a user-friendly layout, setting a new industry standard for intelligence. Intelligent technologies such as winch follow-up and luffing deflection compensation ensure comfortable, convenient, safe, and reliable operation.

2. Exceptional Control Precision: Leads the industry in control micro-mobility, smoothness, and response, enabling precise and stable lifting operations.

3. Stylish Design with Human-Centric Details: The crane features a modern aesthetic, complemented by ergonomic designs like the anti-slip boom climbing device and foldable ladders, enhancing user convenience.

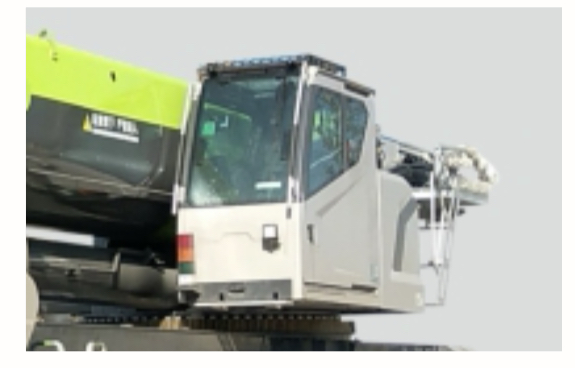

4. Comfortable Operator Environment: The spacious operator’s cabin is equipped with a horizontal-sliding front window, panoramic skylight, and adjustable armrest box seat, providing a comfortable and immersive operating experience.
